Davis Wireless Vantage Vue & Weatherlink Console 6242NZ
Davis Wireless Vantage Vue & Weatherlink Console 6242NZ
- Description
- Get More From Your Weather Station
- Specifications
- Downloads/Useful Links
The Davis Vantage Vue 6242NZ is where home weather monitoring becomes a serious piece of equipment.
Rather than adding more complexity, Davis has concentrated the main outdoor weather instruments into one tough, compact sensor suite designed to withstand long-term exposure to the weather while continuously monitoring the conditions at your property.
The Davis Vantage Vue measures outdoor temperature and humidity, rainfall, wind speed and wind direction. The WeatherLink Console adds indoor temperature and humidity and barometric pressure, while also calculating useful information such as dew point, wind chill and heat index.
But what really separates the Davis Vantage Vue from a typical home weather station is the combination of robust construction, fast data, long wireless range and a console that does far more than simply display today's readings.
Wind information can update as frequently as every 2.5 seconds, giving you the opportunity to see gusts and rapid changes as they happen. The wireless transmission range is up to 300 metres in open conditions between the outdoor sensor suite and WeatherLink Console.
Premium Weather Monitoring Without a Complicated Installation

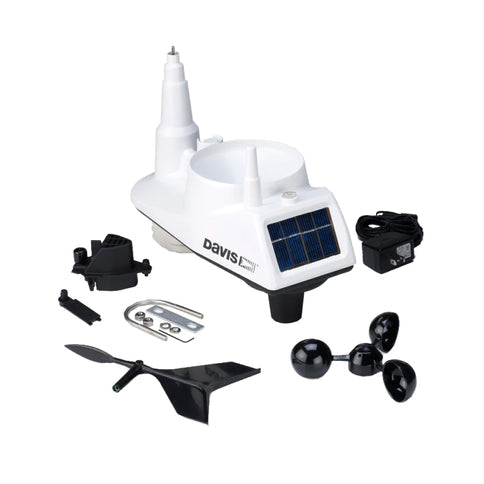

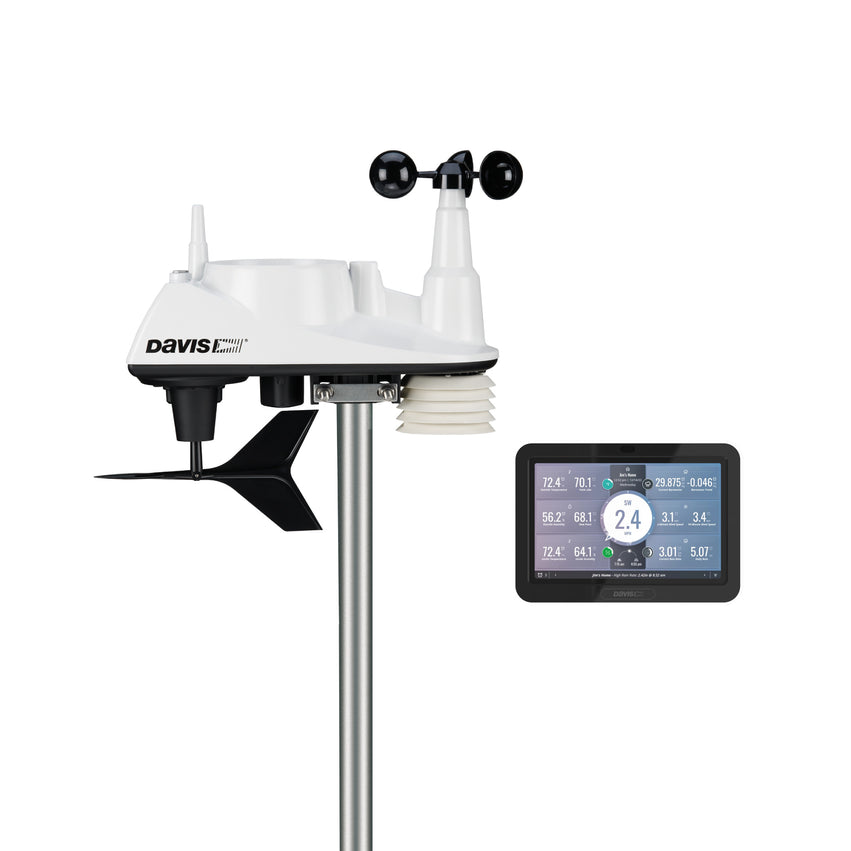

The outdoor Davis Vantage Vue sensor suite is deliberately compact and fully integrated.
Wind, rain, temperature and humidity sensors, transmitter and solar power system are brought together into one outdoor unit. That makes the Davis Vantage Vue particularly appealing if you want high-quality weather monitoring without having to position several separate instruments around the property.
The outdoor sensor suite is solar powered, with stored energy and battery backup maintaining operation when sunlight is unavailable.
Its rugged, weather-resistant construction is designed for continuous outdoor use, making the Davis Vantage Vue a very different proposition from a lower-cost hobby station that happens to measure the same basic weather variables.
Weather That Moves as Fast as the Weather Does
Weather does not change once every few minutes, particularly when the wind is gusting or a front is passing through.
The Davis Vantage Vue is designed to report rapidly, with wind speed and direction capable of updating every 2.5 seconds.
That fast response is particularly noticeable on the WeatherLink Console, where changing wind speed and direction can be followed in near real time rather than appearing as occasional jumps between readings.
Rainfall, temperature, humidity and barometric pressure are also brought together with calculated values and trends to give you a much fuller picture of what is happening at your property.

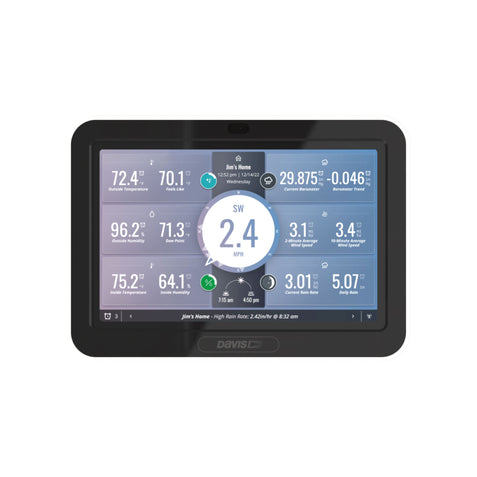

WeatherLink Console — Much More Than a Display
The WeatherLink Console is an important part of the Davis Vantage Vue 6242NZ package.
Its large HD colour touchscreen can be customised to show the weather information that matters most to you, with up to 21 parameters available on the dashboard.
More importantly, the console stores a full database of historical weather records locally.
You can look back through highs and lows, rainfall history and other measurements, create detailed graphs and analyse how conditions have changed over hours, days or months — all on the console itself.
The WeatherLink Console does not need Wi-Fi to receive, display, store or analyse data from your Davis Vantage Vue.
View Your Weather on Your Phone or Computer
If you want remote access, connect the WeatherLink Console to your existing home Wi-Fi network and internet connection.
Your Davis Vantage Vue weather information can then be uploaded to WeatherLink Cloud, allowing you to view your current conditions through WeatherLink on your phone or computer.
This gives you the best of both approaches: a sophisticated weather station that remains fully useful locally, with internet connectivity available when you want the convenience of remote viewing and online sharing.
Expand the System Later
Although the Davis Vantage Vue outdoor sensor suite itself is a fixed, integrated weather station, the WeatherLink Console means the complete system does not have to remain limited to those sensors.
The WeatherLink Console can receive information from up to eight compatible Davis transmitting stations or sensor transmitters.
That means a Davis Vantage Vue system can later incorporate additional specialist monitoring — for example, compatible soil moisture and soil temperature stations or additional Davis sensor transmitters — with the extra information brought together on the same WeatherLink Console.
This is an important distinction: you retain the simplicity of the compact Vantage Vue outdoor weather station while still having scope to build a broader Davis monitoring system if your needs change.
Fast, Long-Range Davis Wireless Communication
The outdoor sensor suite communicates directly with the WeatherLink Console using Davis's wireless radio system.
No home Wi-Fi or internet connection is required between the outdoor station and console.
Davis specifies a transmission range of up to 300 metres in open conditions, giving the Davis Vantage Vue significantly more flexibility when the best location for the outdoor station is some distance from the house.
Your Wi-Fi and internet connection are only needed if you choose to connect the WeatherLink Console to WeatherLink Cloud for online and phone access.
Forecasts, Graphs and Alerts
The Davis Vantage Vue and WeatherLink Console also provide far more than raw weather measurements.
The console can display local forecast information, historical graphs, highs and lows and configurable alarms for the conditions that matter to you.
This makes it useful not only for checking the weather now, but for understanding how conditions are developing and what has happened over time.
Why Choose the Davis Vantage Vue 6242NZ?
- Premium Davis build quality — designed as a durable, long-term weather monitoring system rather than a disposable consumer gadget.
- Compact all-in-one outdoor sensor suite — wind, rain, temperature and humidity monitoring without a complicated multi-instrument installation.
- Very fast weather updates — wind speed and direction can update every 2.5 seconds.
- Long wireless range — up to 300 m line-of-sight between the outdoor sensor suite and WeatherLink Console.
- Powerful WeatherLink Console — HD touchscreen, custom dashboard, local historical storage, extensive graphing and configurable alarms.
- Works without Wi-Fi — current and historical weather information remains available on the WeatherLink Console without an internet connection.
- Optional phone and computer access — connect the console to Wi-Fi to upload data to WeatherLink Cloud.
- Expandable system — add compatible Davis transmitting stations and specialist sensors later through the WeatherLink Console.
The Davis Vantage Vue 6242NZ is particularly well suited to someone who wants a genuinely premium weather station with excellent build quality, fast data and sophisticated historical analysis, but who values the simplicity of a compact integrated outdoor sensor suite.
It is equally at home with a serious weather hobbyist, lifestyle property owner, school or anyone for whom long-term reliability and confidence in the measurements matter more than simply buying the cheapest station capable of displaying wind and rainfall.
FAQ’s
Does the Davis Vantage Vue 6242NZ need Wi-Fi or internet access?
No. The outdoor Davis Vantage Vue sensor suite communicates directly with the WeatherLink Console using a wireless radio signal.
The console can display, store and analyse your local weather information without Wi-Fi.
You only need your home Wi-Fi and internet connection if you want to upload your weather information to WeatherLink Cloud for remote access on a phone or computer.
Can I view my Davis Vantage Vue weather data on my phone?
Yes. Connect the WeatherLink Console to your home Wi-Fi and WeatherLink Cloud and you can view your Davis Vantage Vue weather information through WeatherLink on your phone or computer.
Does the Davis Vantage Vue keep historical weather data?
Yes. The WeatherLink Console stores a database of historical records locally, allowing you to review highs and lows, rainfall history and other measurements and create detailed graphs directly on the console.
Can I add more sensors to the Davis Vantage Vue system later?
Yes, although additional sensors do not plug directly into the integrated Vantage Vue outdoor sensor suite.
The WeatherLink Console can receive data from up to eight compatible Davis transmitting stations or sensor transmitters, allowing specialist monitoring such as soil moisture and soil temperature to be added as separate Davis stations.
What is the main advantage of the Davis Vantage Vue over the Davis Vantage Pro2?
The Davis Vantage Vue concentrates its outdoor weather sensors into a compact, integrated unit, making it simpler to install while retaining Davis's premium build quality, fast updates, long wireless range and WeatherLink capability.
The Davis Vantage Pro2 uses a more configurable outdoor sensor architecture, including the ability to position its anemometer separately from the main sensor suite, and is designed for applications where sensor siting and a research/professional-grade platform are particularly important.
Davis stations do not come with mounting poles so depending on what you have at your location you may require one of the following mounting solutions:
| Specification | Details |
|---|---|
| Brand | Davis Instruments |
| Model / Package | Vantage Vue with WeatherLink Console 6242NZ |
| Weather station type | Premium wireless weather station with integrated outdoor sensor suite |
| Outdoor sensor configuration | Compact, fully integrated Vantage Vue sensor suite |
| Outdoor measurements | Temperature, humidity, rainfall, wind speed and wind direction |
| Indoor measurements | Temperature, humidity and barometric pressure via WeatherLink Console |
| Calculated weather information | Dew point, wind chill, heat index and other derived weather data |
| Outdoor temperature range | -40°C to 65°C |
| Outdoor humidity range | 1–100% RH |
| Wind speed range | From approximately 3 km/h; wind-tunnel tested to 322 km/h |
| Rain collector | Self-emptying tipping-spoon rain collector |
| Rainfall resolution | 0.2 mm — metric version |
| Temperature update interval | Approximately 10 seconds |
| Fastest weather updates | Wind data as frequently as every 2.5 seconds |
| Outdoor sensor radiation shield | Passive radiation shield |
| Outdoor sensor power | Solar powered with battery backup |
| Wireless transmission range | Up to 300 m line-of-sight |
| Wireless communication | Davis frequency-hopping spread-spectrum radio |
| Wi-Fi required between sensors and console | No |
| Console | Davis WeatherLink Console 6313 |
| Console display | HD colour touchscreen |
| Console display area | 171 × 107 mm |
| Console dimensions | 210 × 152 × 19 mm |
| Console dashboard | Customisable — up to 21 weather parameters |
| Local historical data storage | Yes — approximately 180 days stored on the console |
| Historical graphs | More than 80 graphing options |
| Local operation without internet | Yes |
| Wi-Fi | Yes — WeatherLink Console connects to an existing Wi-Fi network |
| Phone / computer access | Yes, through WeatherLink Cloud when the console is connected to Wi-Fi |
| Weather forecasts | Local forecast available offline; extended online forecasts when connected |
| Weather alarms | Configurable alarms through the WeatherLink Console |
| Additional sensor capability | WeatherLink Console can receive data from up to 8 compatible Davis transmitting devices |
| Specialist sensor expansion | Compatible separate Davis transmitting stations can add measurements such as soil moisture, soil temperature and additional temperature/humidity |
| Vantage Vue sensor suite expansion | Integrated sensor suite itself is fixed rather than modular |
| Console power | AC powered with integrated rechargeable battery backup |
| Annual service plan required | No for normal WeatherLink Console operation |
