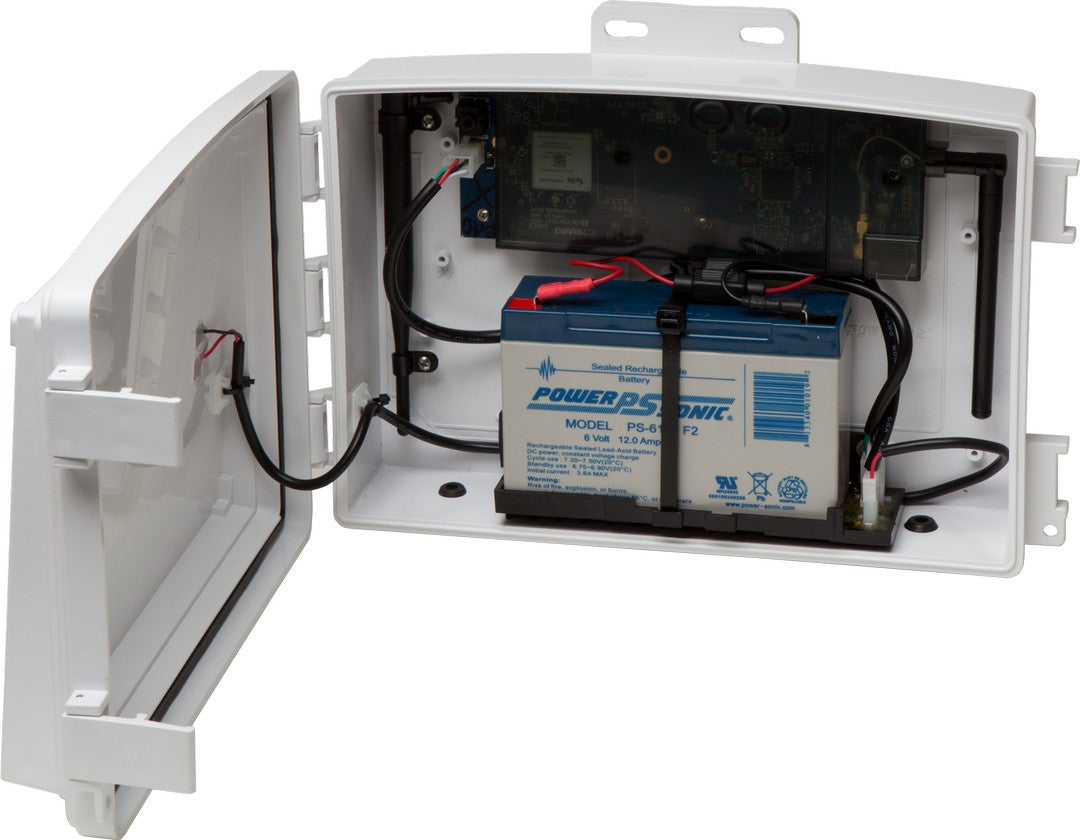

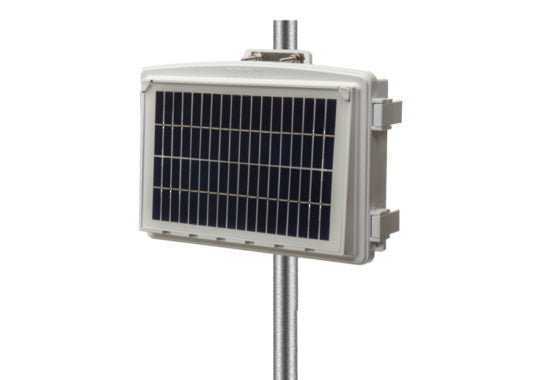

EnviroMonitor 3G/4G Cellular Gateway 6803A

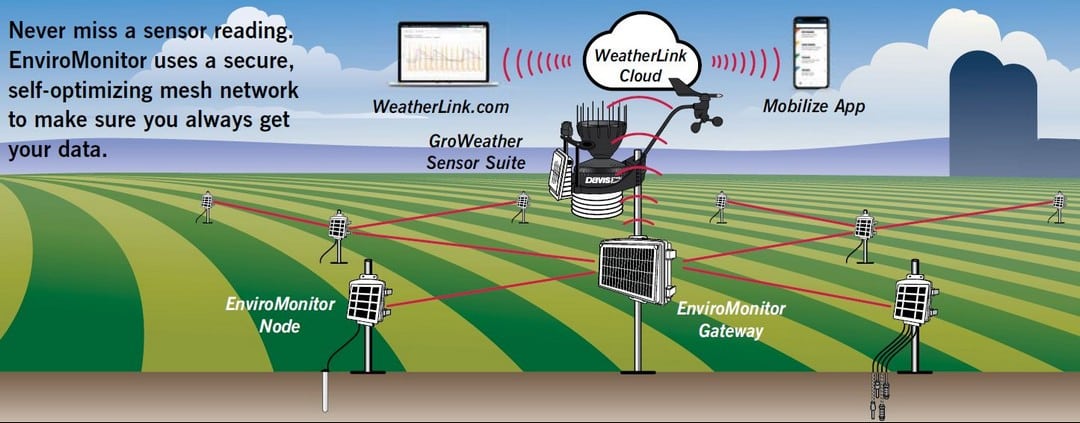

How the EnviroMonitor system works:

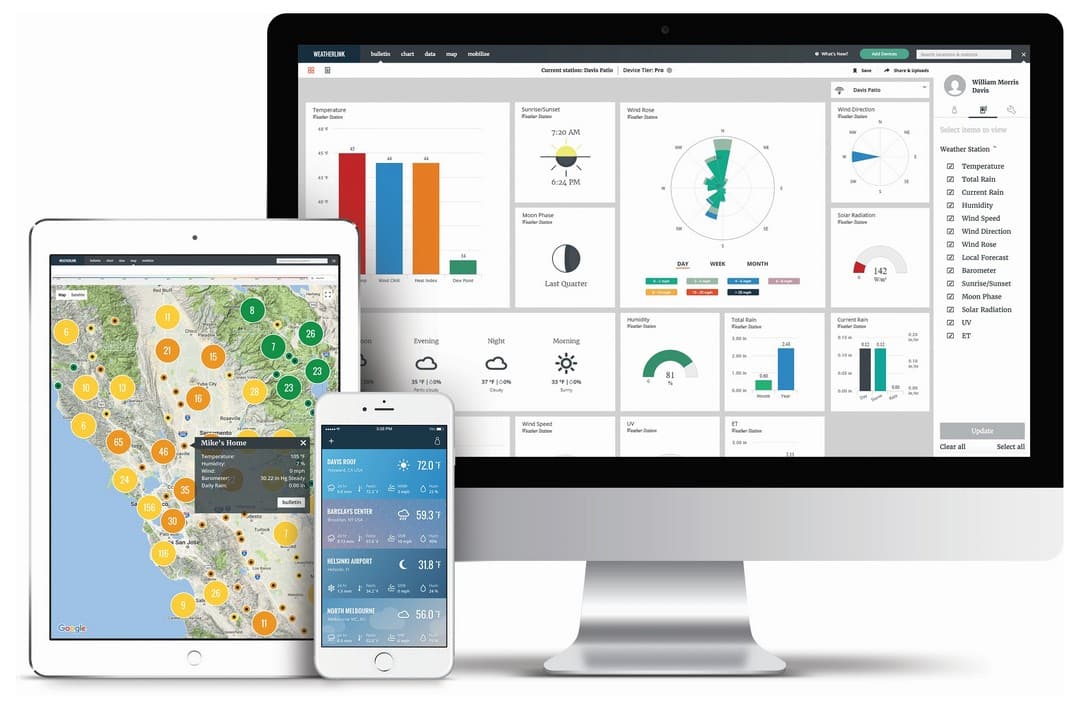

• The Gateway uploads the data from any sensor suites or nodes to the Davis website, weatherlink.com, using Spark’s 3G /4G network
• Use with any Davis Instruments sensor suite, cabled or wireless (sold separately) and/or
• Add one to as many as 25 or even more 6810 EnviroMonitor Nodes (sold separately)if you want to add additional sensors into your EM network
• Each Node has four ports. Ports are not hardwired so you can install any four compatible sensors using the Davis EnviroMonitor App and BlueTooth
• Each node transmits the sensor data wirelessly back to the Gateway
• Nodes can be up to 750- 1200m line of sight apart (depending on height about crops and the ground)
• If required, extend the range between the Gateway and the Nodes using long-range antenna (sold separately)

Sensor Options

You can connect any of the Davis Vantage cabled or wireless sensor suites.

Cabled sensor suites are a cheaper option if you want to measure the weather at the same location as the Gateway.

Wireless sensor suites provide more flexibility if you want to site your weather station up to 300m away from the Gateway.

All sensor suites measure the following parameters:

• Air Temperature
• Relative Humidity
• Wind Speed
• Wind Direction
• Rain

Optional sensors are:

• Total Solar Radiation (used for calculating Potential Evapotranspiration)
• Ultra Violet Radiation (used for estimating sunburn risk)

Barometric Pressure is also measured in the Gateway

See Lookup Table below for model numbers.

 Sensor Suite (ISS) Lookup

* Items can be retrofitted at a later date

Requirements:

• Requires an annual service plan and one-time activation fee
• Spark 3G/LTE coverage (an additional Spark data plan is NOT required)
