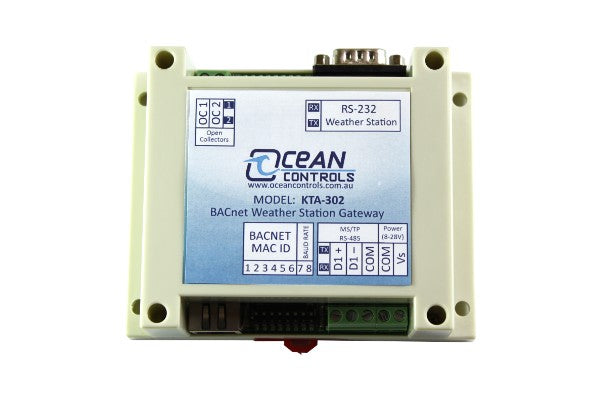

KTA-302 BACnet MS/TP Weather Station Gateway
Description
The gateway allows you to easily connect your BACnet network to one of the following Davis weather stations:
- 6152C Cabled Vantage Pro 2
- 6162C Cabled Vantage Pro 2 Plus
- 6152NZ Wireless Vantage Pro 2
- 6162NZ Wireless Vantage Pro 2 Plus
- 6153NZ Wireless Vantage Pro 2 Fan Aspirated
- 6163NZ Wireless Vantage Pro 2 Plus Fan Aspirated
- 6316C Cabled Weather Envoy (with Cabled VP2 ISS or VP2 ISS Plus )
- 6316NZ Wireless Weather Envoy (with Wireless VP2 ISS, VP2 ISS Plus, VP2 ISS Solar Fan Aspirated, VP2 ISS Plus Solar Fan Aspirated or VVue ISS)
- 6250NZ Vantage Vue
The gateway plugs into the weather station's Console or Envoy using the Davis WeatherLink cable (Weather Link for Vantage Pro Serial)
Features:
- BACnet network parameters easy configurable by onboard switches.
- Supports BACnet device and object discovery.
- Allows you to configure unit conversions.
- Two Open Collector outputs for alarms or control
- Gives you all provided data from the weather station, which includes other 16 values that were previously unavailable weather data.
- The unit can be screwed to a panel, or mounted to DIN rail.
- Dimensions: 115 × 90 × 40 mm
